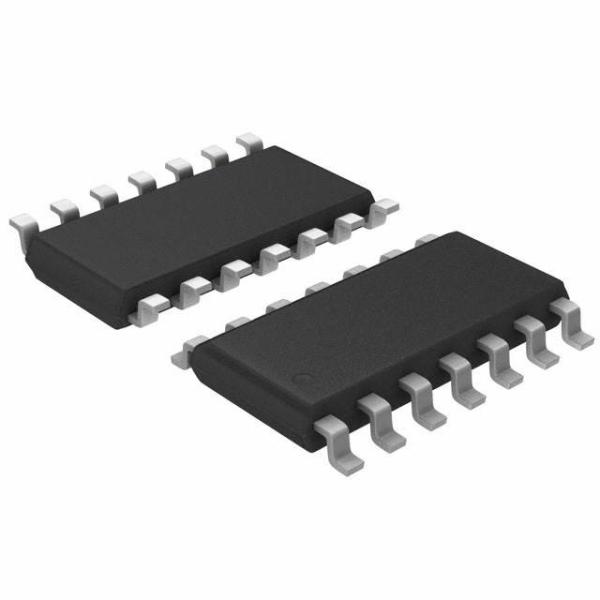

M74HC14RM13TR Hex Schmitt inverter sound ic chip counter ic chip

Brand Name : STMICROELECTRONICS

Model Number : M74HC14RM13TR

Certification : Original Factory Pack

Place of Origin : Original

MOQ : 5pcs

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 290PCS

Delivery Time : 1 Day

Packaging Details : please contact me for details

Description : Inverter IC 6 Channel Schmitt Trigger 14-SO

Supply voltage : -0.5 to +7 V

DC input voltage : -0.5 to VCC + 0.5 V

DC output voltage : -0.5 to VCC + 0.5 V

DC input diode current : ± 20 mA

DC output diode current : ± 20 mA

Contact Now

M74HC14RM13TR Hex Schmitt inverter sound ic chip counter ic chip

Features

■ High speed: tPD =12 ns (typ.) at VCC = 6 V

■ Low power dissipation: ICC = 1 μA (max.) at TA = 25 °C ■ High noise immunity: VH = 1.2 V (typ.) at VCC = 6 V

■ Symmetrical output impedance: |IOH| = IOL = 4 mA (min.)

■ Balanced propagation delays: tPLH ≅ tPHL

■ Wide operating voltage range: VCC (opr) = 2 to 6 V

■ Pin and function compatible with 74 series 14

Description

The M74HC14 is a high speed CMOS hex Schmitt inverter fabricated with silicon gate C2MOS technology. Pin configuration and functions are the same as those of the M74HC04 but all the inputs have 20% VCC hysteresis level.

This, together with its Schmitt trigger function, allows the device to be used on line receivers with slow rise/fall input signals. All inputs are equipped with protection circuits against static discharge and transient excess voltage.

STOCK LIST

M27C64A-10F1 4258 ST 11+ DIP
M3488B1 1352 ST 14+ DIP
M27C256B-12F1 3712 ST 10+ DIP
MAX186DCPP 4492 MAXIM 10+ DIP-20
EE80C196KC20 3090 INTEL 13+ PLCC68
BDW42 5500 FSC 14+ TO-220
4N35 3000 EVERLIGHT 15+ DIP-6
ICE1QS01 2460 15+ DIP-8
IR2128 1500 IR 14+ DIP-8
AMP04FPZ 1600 AD 16+ DIP-8
IR2520D 1500 IR 13+ DIP-8
FZK101 1120 SIEMENS 15+ DIP-16
DS3696N 4620 NSC 16+ DIP-8
DG509ACJ+ 8280 MAXIM 14+ DIP-16
HY6264ALP-10 2460 HY 15+ DIP-28
MC33179PG 1811 ON 11+ DIP
MC68HRC705KJ1CDW 4102 MOT 10+ SOP-16
FZH145 3460 SIEMENS 16+ DIP-16
PE-65968 3790 PULSE 1307+ SOP-6
MAX328EPE 4024 MAXIM 10+ DIP-16
MAX680EPA 5479 MAXIM 11+ DIP-8
AD633ANZ 2450 AD 16+ DIP-8
DDA010 1025 16+ DIP-8
CNY17-3 4450 EVERLIGHT 16+ DIP-6
EL3041 2970 EVERLIGH 15+ DIP-6
DB157G 1325 SEP 16+ DIP-4
COM20020ILJP 4275 SMSC 15+ PLCC28
LP3966ES-ADJ 2932 NSC 15+ TO-263
MT9042BP 3946 MITEL 10+ PLCC
